Home / Products / MityDSP-L138F – FPGA+DSP+ARM System on Module

MityDSP-L138F – FPGA+DSP+ARM System on ModuleARM9, Floating Point DSP, and User Programmable FPGA SOM

Product status: End of Life. See latest PCN for details.

Migrate to the MityDSP-L138F-A7 drop-in replacement.



The MityDSP-L138F System on Module (SOM) is the highest performance module in the OMAP-L138 family of MityDSPs. An overview of the module family is available here. The MityDSP-L138F ARM9 system supports QNX, embedded Linux, Windows CE 6 and ThreadX operating systems. It features the dual-core OMAP-L138 CPU from Texas Instruments which provides both an ARM9 applications processor and a C674x Fixed / Floating Point DSP.

When combined on the MityDSP with the optional on-board Xilinx Spartan-6 FPGA, system designers have available two 456MHz CPUs along with the capability to add fixed function co-processing or I/O co-processing in the FPGA. The MityDSP-L138F also conveniently offers applications such as industrial embedded instrumentation.


  • Embedded Instrumentation
  • Industrial Automation
  • Industrial Instrumentation
  • Medical Instrumentation
  • Embedded Control Processing
  • Network Enabled Data Acquisition
  • Test and Measurement
  • Software Defined Radio
  • Bar Code Scanners
  • Power Protection Systems
  • Portable Data Terminals




TI DSP Processor C674x Fixed / Floating Point DSP
Max CPU Speed 456MHz
L1 Program Cache 32KB
L1 Data Cache 32KB
L2 Cache / Internal RAM 256KB

TI Applications Processor ARM926EJ-S MPU
Max CPU Speed 456MHz
L1 Program Cache 16KB
L1 Data Cache 16KB
Internal RAM 8KB



System Memory  Available for Both CPUs
RAM 128MB to 256MB
NOR Flash Up to 16MB
NAND Flash 256MB to 512MB


FPGA Options XC6SLX16 XC6SLX45
Slices 2,278 6,822
Logic Cells 14,579 43,661
Block RAM 576Kb 2,088Kb

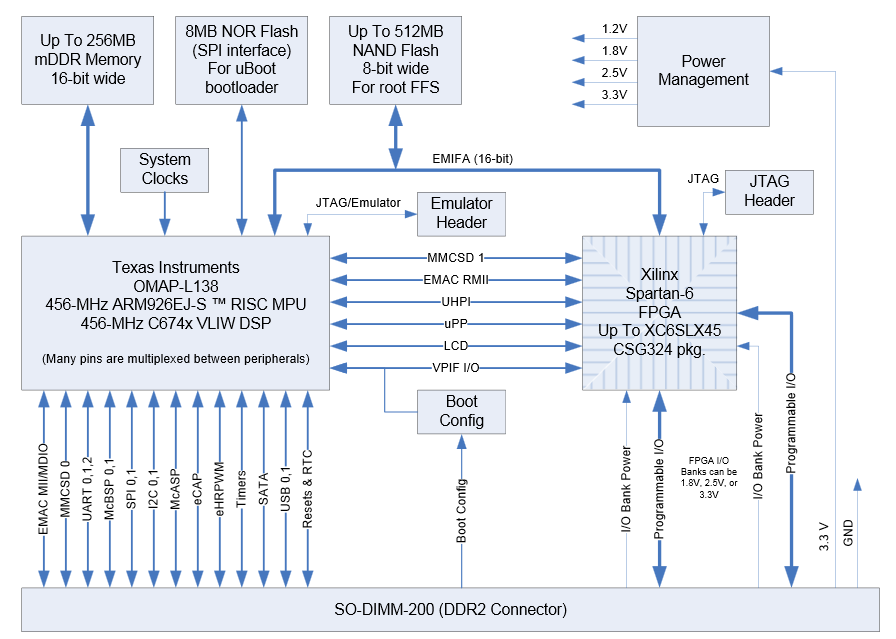

Block Diagram

MityDSP-L138F-Block Diagram


USB (2) McASP Timers
UART (3) McBSP (2) uPP
MMC/SD (2) SPI (2) uHPI
LCD I2C (2)

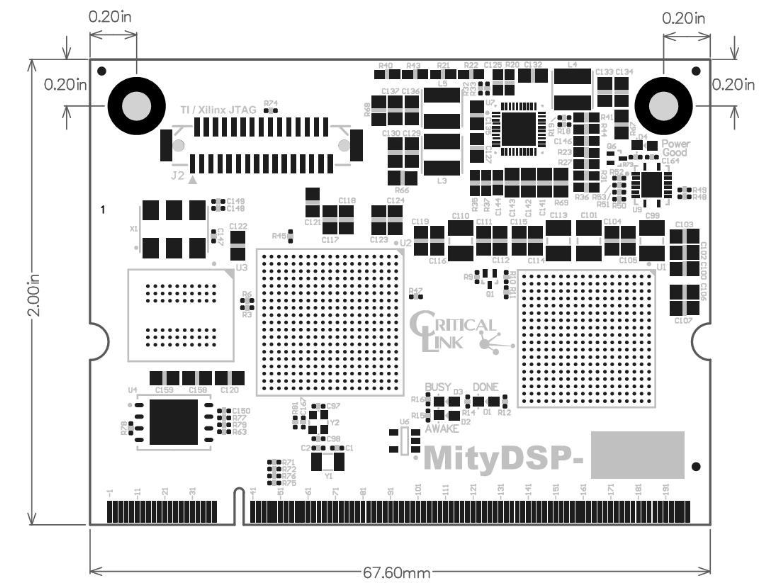

Dimensions Length Width
Inches 2.66 2.0
Millimeters 67.60 50.80

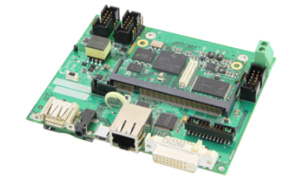

Compatible Development Kits

Development Tools and Software

Software Support CPU Subsystem
Real-time Linux Operating System ARM9
ThreadX RTOS from ExpressLogic ARM9
uBoot ARM9
QNX Real-time Operating System ARM9
Windows CE 6 ARM9
Qt Embedded Graphics ARM9
DSP/BIOS Real-time Operating System C674x DSP


Development Tool Subsystem
Texas Instruments Code Composer Studio ARM9 and C674x DSP
GNU Toolchain ARM9
Xilinx ISE Xilinx FPGA
Timesys LinuxLink ARM9

Critical Link has partnered with Timesys to provide their LinuxLink toolset which enables quick and easy design, development, deployment and debugging of an embedded product based on open source Linux. Please visit the MityDSP-L138F LinuxLink Development Center to get started.

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.



Related Products



L138-FI-336-RL 456MHz 6SLX45 16MB 512MB 256MB -40C to +70C Buy
L138-FI-325-RC 456MHz 6SLX45 16MB 256MB 128MB 0C to +70C Buy
L138-FG-326-RC 456MHz 6SLX16 16MB 256MB 256MB 0C to +70C Buy
L138-FG-325-RC 456MHz 6SLX16 16MB 256MB 128MB 0C to +70C Buy
L138-DI-325-RI 375MHz 6SLX45 16MB 256MB 128MB -40C to +85C Buy
L138-DI-225-RI 375MHz 6SLX45 8MB 256MB 128MB -40C to +85C Buy
L138-DG-325-RI 375MHz 6SLX16 16MB 256MB 128MB -40C to +85C Buy
L138-DG-225-RI 375MHz 6SLX16 8MB 256MB 128MB -40C to +85C Buy
